Horsepower

260 hp

Max Cruise

198 ktas

Max Altitude

25,000 ft

Max Range

1000 nm

Useful Load

1093 lb
(495 kg)

Flying Perfection

Backed by more than 30 years of aircraft innovation, Panthera is the culmination of our knowledge and expertise designing efficient aircraft. The Panthera offers the most exciting flying experience that a four seat aircraft can offer. Revel in every thrilling climb, turn and decent. With a centrally positioned stick, the Panthera puts control where it naturally should be for the Ultimate hands-on flying experience. The Panthera’s exceptional performance is matched by its safety features making it the ultimate four seat tourer.

Luxurious Surroundings

Gull-wing doors provide easy access to the cockpit and cabin and with a comfortable, ergonomically stylish four place interior you will feel right at home. Finished with high quality handcrafted leather, LED lighting throughout and virtually unobstructed views forward, above and to the side, Panthera is not just fast but comfortable.

Efficiency By Design

Pipistrel are shaping the future of flight with cutting edge efficient aircraft. Panthera is designed with advanced fluid dynamics software and its sleek looks come from our design philosophy to reduce drag and lower fuel consumption. Thanks to advanced technology and design, Panthera is lightweight and powered by the Lycoming IO-540.

why panthera?

Innovation
  • Perfectly designed four seater optimised for performance while reducing its environmental footprint. At your fingertips the Garmin avionics provides superior situational awareness and a proven advanced flight deck.
Value
  • More speed, less power. Cruise at nearly 200kts in comfort with a range of over 1,000nm. Panthera gets you to your destination fast, with low operating and maintenance costs.
Varnost
  • Safety comes as standard with exceptional flight handling characteristics, integral roll bar protection and built in energy absorption zones, matched with a full airframe parachute rescue system.
Technical Data Pipistrel Panthera

PANTHERA

Edinstveni 4-sedežnik s privlačnim oblikovanjem in učinkovitim delovanjem.

Prenesi brošuro

Nebo se je odprlo kot še nikdar prej in meje izginjajo vsak dan. Potreba po hitrem in učinkovitem potovanju na dolge razdalje še nikoli ni bila večja. Predstavljajte si letalo, ki lahko v celoti izkoristi majhna letališča s kratkimi vzletno-pristajalnimi stezami, da vas pripelje bližje vašemu cilju kot kdajkoli prej ali pa vas popelje po vsem svetu in vam odpre popolnoma nov svet priložnosti. Panthera je letalo, ki je skrbno zasnovano tako, da je za vas varno in udobno, hkrati pa tiho in prijazno do okolja. To je inovativno letalo, ki takoj pritegne vašo pozornost.

Panthera je bila že od samega začetka zasnovana tako, da je na voljo bodisi z električnim motorjem, hibridnim pogonom ali z bencinskim motorjem - v tem primeru se je Pipistrel za avtomobilsko gorivo odločil zaradi nižje cene in boljše razpoložljivosti v več delih sveta v primerjavi z letalskim gorivom.

For more information, please visit discoverpanthera.com.

Pomembno je izpostaviti Pantherine ključne izjemne značilnosti:

Innovation

Panthera is designed by applying the most modern design and construction techniques, on top of 30 years of knowledge, experience and excellence in building aircraft. Panthera’s organic curves are a product of optimization through advanced, in-house developed computer tools, where each detail is designed to ensure minimum drag and maximum efficiency.

It is specially optimized to ensure minimum noise and maximum performance, reducing the aircraft’s environmental footprint and increasing cabin comfort. Panthera also features all-electric systems for component actuation. Its titanium trailing-link undercarriage, flaps and trim are all electrically operated, resulting in low weight and maximum reliability by removing the need for complex and heavy hydraulic systems. All internal and external lighting is realized using state-of-the-art LED technology, providing for better clarity, recognition and feel.

Performance

Panthera achieves unprecedented efficiency through careful aerodynamic shaping, retractable titanium undercarriage, lightweight advanced composite structure, a tailor-made propeller and a dedicated performance exhaust system. Efficiency is translated directly into more speed for the same power. No other four-seat aircraft exists that flies this fast on the same engine! For the owner/operator this represents significantly lower operating costs and simplified maintenance.

The maximal range is available with any payload, something which pilots of four-seat airplanes have been wishing for. The robust design of the undercarriage and low overall weight allows for operations from short grass strips, taking you as close as possible to your desired destination. The engine is ready for the future, able to accept unleaded fuels and meeting the future environmental requirements. Hybrid and electric models further reduce the take-off noise footprint by taking advantage of the pure-electric take-off.

Cabin comfort

One of the major design points of Panthera is the state-of-the-art ergonomic cabin. All features provide superior comfort and usability for people of all sizes. Access is easy via three large gull-wing style doors, two in the front for pilot and co-pilot and one for the back row of seats. Pilot and co-pilot seats are adjustable. The central stick is ergonomic and provides the sporty feel signature to Panthera. The two back seats are very wide and convenient. There is a supersized – standard cabin luggage sized – cargo door, but the cargo can also be accessed from the cockpit during the flight! The interior is furnished with the highest quality leather and LED lighting for exclusive feel and functionality. Climate is controlled thanks to the on-board air-condition with automatic ventilation (optional). It will keep you cool during the summer and warm during the winter. Also special is the solar-powered ventilation which keeps the cabin cool when Panthera is parked outside in the sun.

Available colour combinations of the interior: Panthera interior.pdf – download here

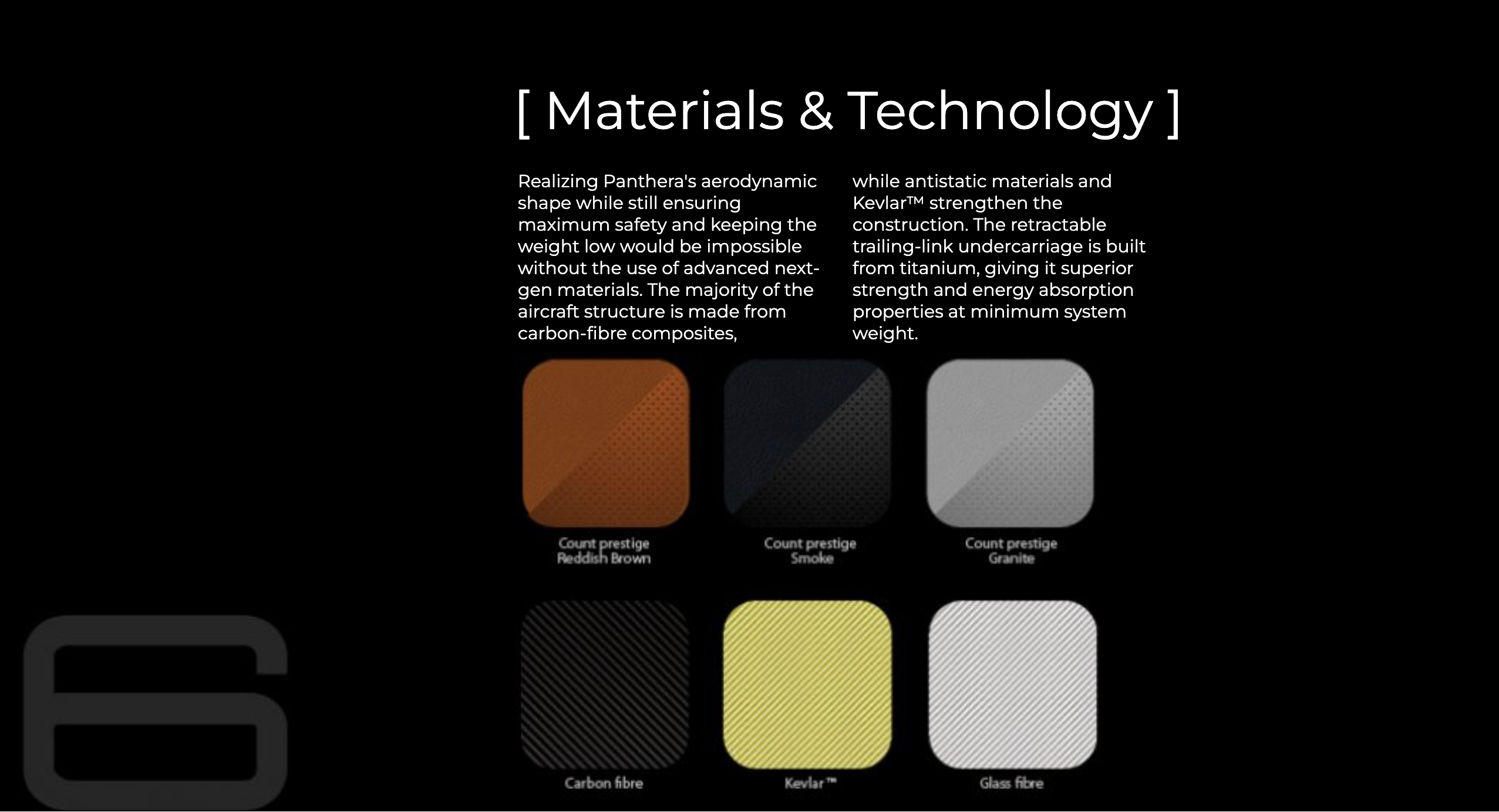

Materials and technology

Each detail of Panthera’s graceful lines has been thoroughly aerodynamically optimized using customized, state of the art computational fluid dynamics software, resulting in a smooth and clean shape. The specially designed wing airfoils are optimized for cruise efficiency and therefore speed, while at the same time ensuring high maximum lift and docile stall characteristics. Its instantly recognizable T-tail ensures low interference drag and helps improve spin characteristics by preventing the horizontal stabilizer from shadowing the rudder at high angles of attack.

Realizing Panthera’s aerodynamic shape while still ensuring maximum safety and keeping the weight low would be impossible without the use of advanced next-gen materials. The majority of the structure of the aircraft is made from carbon-fibre composites, with antistatic materials and Kevlar used in areas where it matters. The retractable trailing-link undercarriage is built from titanium, giving it superior strength and energy absorption properties at minimum system weight. All actuation systems on the aircraft are fully electric, avoiding the need for complex and heavy hydraulics.

Varnost

Panthera is your personal high performance bubble of safety! As part of the rich serial equipment, Panthera features a full-airframe parachute rescue system, which was specially developed, so it can be deployed at both low- and high speeds as well as low altitudes.

The cabin has been engineered as a safety cell/roll bar with built-in energy absorption zones, providing superior safety to the occupants in the event of an accident. The seats and safety belts are engineered to the latest +26G CS/FAR-23 certification standards. Immediately noticeable is the incredible view from the cockpit. By having just one central pillar, the pilot’s view forward and sideward is virtually unobstructed, thus greatly improving the safety of flight. The ergonomic cockpit comes with special annunciation panels, improving situational awareness when it comes to different audio and visual alarms (terrain, stall, overspeed, engine issues, etc.).

Panthera’s performance also contributes to safety – the lightweight structure, powered by powerful engines means that you will reach safe speeds and altitudes much quicker than usual, reducing time spent in the »critical zones«. Special attention has been paid to realize the aerodynamic shape, which gives Panthera excellent handling at low speeds and superior stall/post-stall characteristics. Also important are tailored solutions to simplify maintenance, thus reducing the probability of mistakes occurring during the check-ups.

Models
  • PANTHERA Brez TC, Tovarniško dokončana (s certificiranim Lycoming IO-540V-V4A5)
  • PANTHERA Individual Non-TC Self-built (with Certified Lycoming IO-540V-V4A5 – requires approximately 1800 hours of skilled labor)
  • PANTHERA EASA TC CS-23 Amdt 5 – Anticipated for 2024
  • PANTHERA HYBRID Non-TC Factory Finished – under development
  • PANTHERA ELECTRO Non-TC Factory Finished – under development
Technical Data Pipistrel Panthera
LabelStat
MODELPANTHERA
MOTORLycoming IO-540V-V4A5
največja moč260 hp / 194 kW
TEŽA IN DIMENZIJE
maksimalna vzletna masa, MTOM 1315 kg / 2900 lb (predmet povečanja na 1360 kg / 3000 lb)
uporabna obremenitev500 kg / 1100 lb
skupaj uporabnega goriva 2 x 105 l / 2 x 27.7 gal
polni tovor goriva350 kg / 770 lb
dolžina8.07 m / 26 ft 6 in
Razpon kril10.86 m / 35 ft 8 in
Višina2.19 m / 7 ft 2 in
površina kril11.2 m2 / 121 ft2
ZMOGLJIVOSTI (pri MTOM)
stall speed (flaps extended), VS055 KIAS
stall speed (flaps retracted), VS60 KIAS
manevrska hitrost, VA143 KIAS
Vne-Najvišja dovoljena hitrost220 KIAS
Učinkovita potovalna hitrost pri 75% moči198 KTAS, FL 80
hitrost dviganja pri MTOM in VY6.6 m/s / 1300 ft/min
točka vzletnega zaleta372 m / 1220 ft
vzletna razdalja preko 50′ ovire657 m / 2155 ft
pristajalna razdalja preko 50′ ovire706 m / 2316 ft
točka vožnje po tleh pri pristanku346 m / 1135 ft
poraba goriva pri 75% moči56 l/h / 14.8 gal/h
območje doleta (z rezervo 45 min) > 1000 nm, 155 KTAS, FL 120, 4 osebe na krovu (4 x 86 kg)
plafon letenja7600 m / FL250

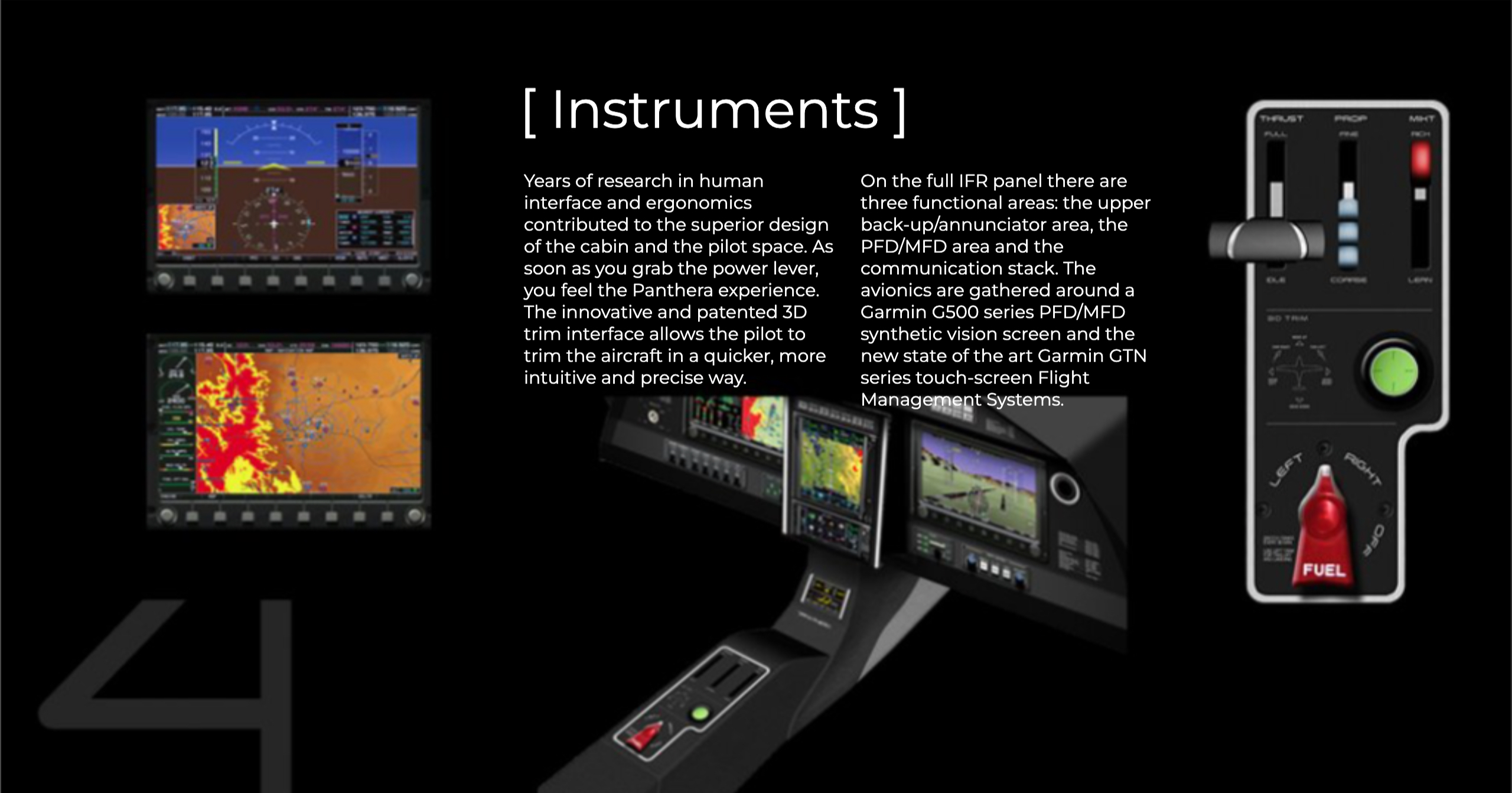

AVIONIKA
  • Garmin G3X GDU 460 dvojni 10-palčni zaslon PFD in MFD (dvojni ADAHRS, sintetični vid, EMS, ARINC modul)
  • Garmin GMC 307 2-osni digitalni avtopilot, z GPS-om
  • Garmin GTN 750 Xi Com/Nav/IFR GPS, zaslon na dotik
  • Garmin GTN 650 Xi Second Com/NAV/IFR GPS, zaslon na dotik
  • Garmin GMA 35 Remote Audio Panel, Intercom
  • Garmin GTX 345R Transponder Mode C/S ES ADS-B v/izklop
  • Artex ELT 345 (406 MHz)
  • Mid-Continent Instruments SAM Backup Airspeed, Backup Altimeter, Backup Artificial Horizon

Opomba: podatki so za višino morske gladine, trdo vzletno-pristajalno stezo, pogoje ISA. Pipistrel si pridržuje pravico, da spremeni ta podatkovni list, kadar koli nastanejo spremembe zaradi izboljšanja izdelka, predpisov vlade/upravnega organa ali drugega dobrega vzroka.

Future Variants
LabelPanthera Hybrid ExpPanthera Electro Exp
Hibridni pogon vzletne moči 200 kWElektrični pogon vzletne moči 200 kW
Nazivna moč200 kW (150 kW continuous)
Maximum cruise power 100 kW
200 kW (150 kW neprekinjeno)
Teža in dimenzije
MTOM1315 kg / 2900 lb1315 kg / 2900 lb
Koristni tovor415 kg / 915 lbdoločeno naknadno
Skupno gorivo za porabo2 x 105 l / 2 x 27.7 galN/A
Polni tovor goriva265 kg / 585 lbN/A
Razpon kril10.86 m / 35 ft 8 in10.86 m / 35 ft 8 in
Dolžina8.07 m / 26 ft 6 in8.07 m / 26 ft 6 in
Višina2.19 m / 7 ft 2 in2.19 m / 7 ft 2 in
Površina kril11.2 m2 / 121 ft211.2 m2 / 121 ft2
Zmogljivosti (pri MTOM)
Hitrost zastoja (z zakrilci)60 KIAS62 KIAS
Hitrost zastoja (brez zakrilc)65 KIAS68 KIAS
Manoeuvring speed VA143 KIAS143 KIAS
Najvišja strukturna potovalna hitrost VC175 KIAS175 KIAS
Vne-Najvišja dovoljena hitrost220 KIAS220 KIAS
Značilna potovalna hitrost pri 75% moči177 KTAS @ FL150 (polna moč generatorja)določeno naknadno
Značilna potovalna hitrost pri 55% močiN/A177 KIAS
Hitrost vzpona pri MTOM in VY5.8 m/s / 1150 fpm5.8 m/s / 1150 fpm
Točka vzletnega zaleta290 m290 m
vzletna razdalja preko 50′ ovire530 m530 m
pristajalna razdalja preko 50′ ovire570 m570 m
Točka vožnje po tleh pri pristanku
Poraba pri zmogljivi potovalni hitrostidoločeno naknadnodoločeno naknadno
Poraba pri varčni potovalni hitrostidoločeno naknadnodoločeno naknadno
Dolet z 45 min rezervedoločeno naknadnodoločeno naknadno
Vrhunecdoločeno naknadnodoločeno naknadno

Opomba: Podatki so okvirni. Letalo je v razvoju, parametri se lahko spreminjajo.

Notranje dimenzije kabine
Vidno polje

Priročniki so dobavljeni kupcem ob dostavi zrakoplova ali na posebno zahtevo.

Certificate of Airworthiness according to Civil Aviation Safety Regulations of Australia
